: The third generation C3 automatic nozzle cleaning machine AC24P-5

With the development of SMT, the miniaturization and high-density placement of parts has become a trend. Subsequently, the suction nozzle of the SMT placement machine is more precise, which has a greater impact on the placement quality. In the actual placement process, due to the suction nozzle being contaminated with solder, flux or other dirt, the suction nozzle is clogged, which is easy to cause throwing. Earlier, we could not solve the problem with steel needle stabbing or ultrasonic vibration. The nozzle cleaning machine developed in response to this situation adopts a new cleaning method, which can remove the dirt on the nozzle that could not be removed in a short time. And the nozzle will not be damaged during the cleaning process. Because the non-toxic and harmless cleaning fluid is used, the whole process is more environmentally friendly.

technical parameter technical parameter

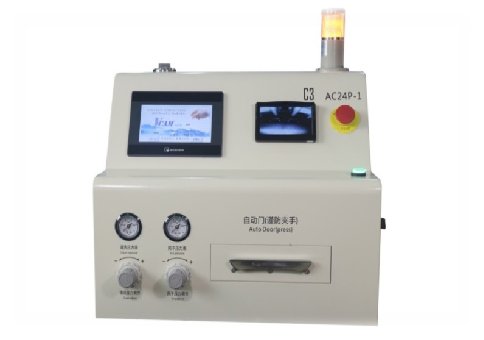

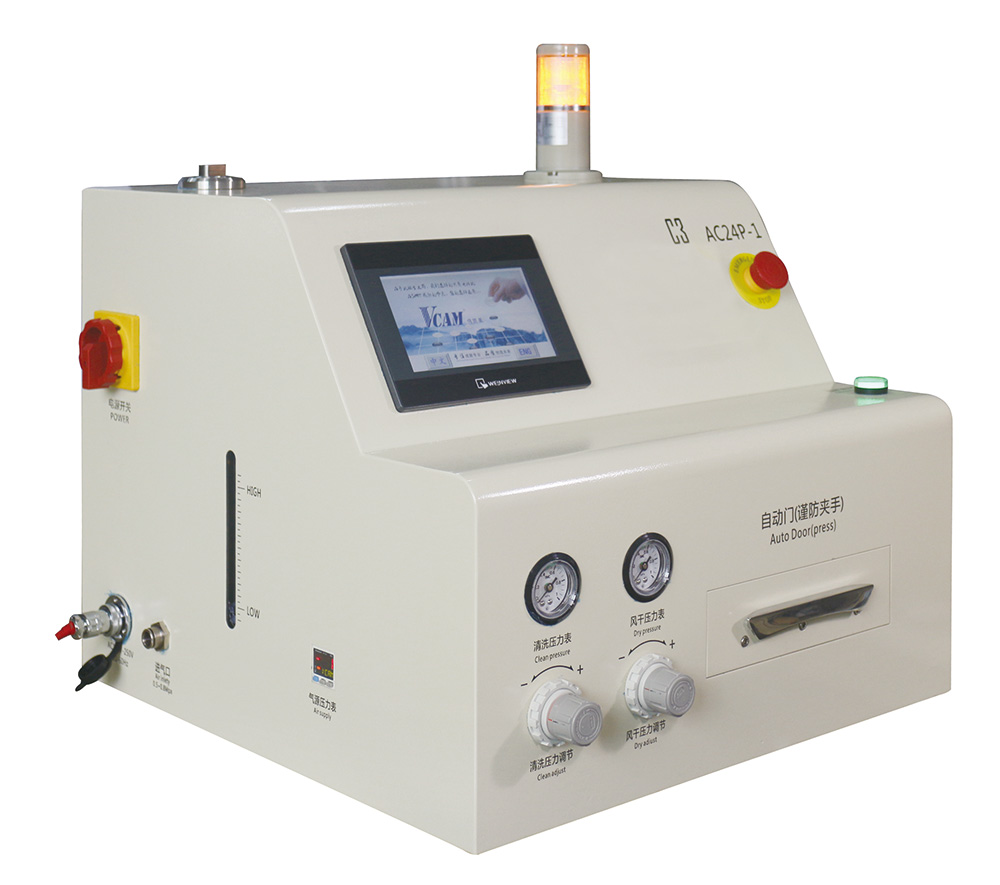

The third generation C3 automatic nozzle cleaning machine

Product function

24 cleaning heads work alternately to reduce cleaning time and improve cleaning efficiency
Visual transparent door, can directly through the transparent door real-time observation of internal cleaning state
Automatic access door, change the traditional push-pull mode, to avoid the alignment deviation when pushing and pulling, resulting in the cleaning of suction nozzle is not clean
The water level and air pressure alarm system can automatically detect the water level and air pressure information and alarm. Avoid equipment failure and cleaning efficiency decline caused by personnel negligence.

technical parameter

Cleaning quantity: 24 pcs

Mounter type: Fuji, Panasonic, Siemens, Philips, Yamaha and other domestic and foreign mounting equipment

Tray type: all kinds of nozzles 01005-2125

Type of cleaning agent: Type of cleaning agent: pure water to dilute the solution

Air pressure alarm: automatically stop working and issue an alarm when the air pressure is lower than the set pressure

Water level alarm: the water level exceeds the warning line setting and cannot work and an alarm is issued

Working door: one-button automatic entry and exit

Operation panel: 7-inch touch screen (optional)

Working voltage: AC 110V-250V 50~60Hz

Working pressure: 0.5-0.6MPA

Air source requirement: ≥0.6MPA

Power: 100W

Air source: compressed clean and dry air

Air consumption: 250NL/Min
